Comparisons with the NASA ALVICE lidar are in Progress, so… Why Measure Water Vapour in the Upper Atmosphere?

The Crows have become Night Owls and put in a Herculean effort in the last couple weeks to prepare and begin measurements with our Network for the Detection of Atmospheric Composition Change (NDACC) colleagues from NASA’s Goddard Space Flight Center. The group we are collaborating with is led by Dr. Dave Whiteman and their lidar system is called ALVICE: Atmospheric Lidar for Validation, Interagency Collaboration and Education.

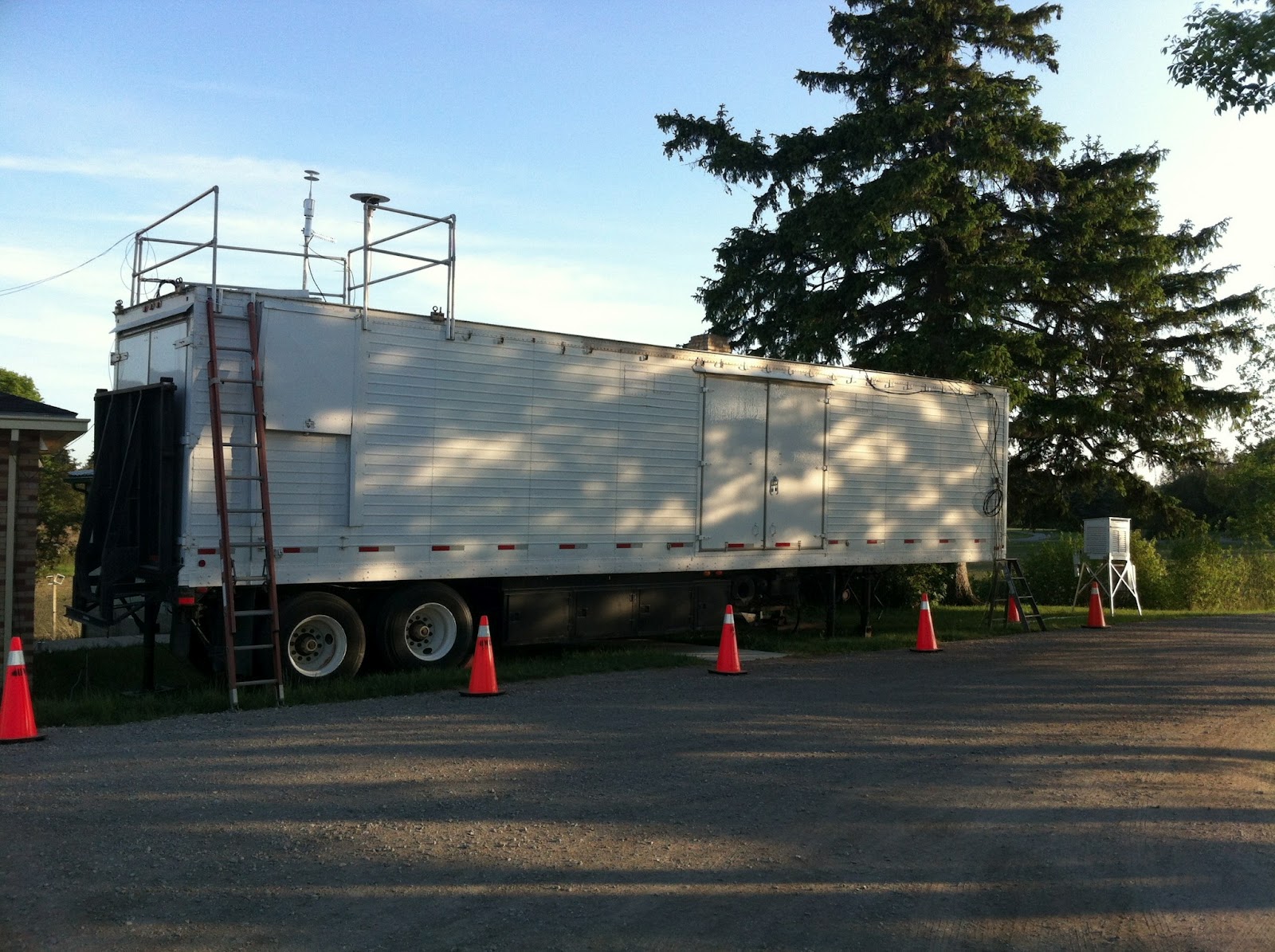

The NASA ALVICE trailer parked out at Western’s Environmental Science Research Facility. The building housing the PCL system is just to the left of the trailer.

The ALVICE system is mobile, meaning that it can be transported in a self-contained trailer. The system can measure water vapor mixing ratio, aerosol backscatter/extinction/depolarization and temperature in both daytime and nighttime. The ALVICE group is not just from NASA but includes students and faculty from Howard University in Washington DC, as well as collaborating scientists from Brazil and Bolivia.

The goal of our measurements over the next month is to compare our measurements to validate our system calibrations, by inter-comparisons, balloon measurements, calibration sources and satellites. The balloon measurements include regular weather balloons plus ozonesondes and frost point hygrometers, which are carried up by a balloon into the stratosphere to measure the small (a few ppmv) but important amount of water vapour present (1 ppmv means in a cubic litre of air in the lower stratosphere for every million air molecules there is 1 water vapour molecule). The PCL has been able to do these validation checks in the past in the lower and middle troposphere (the lower part of the atmosphere below about 12 km altitude) but has not had the ability to validate its measurements in the upper troposphere and lower stratosphere (the UTLS).

The UTLS is of great importance in large part due to water vapour, as water vapour is important in the chemistry of ozone. If the temperature changes in the troposphere it affects the amount of water vapour which can mix into the stratosphere and interact with ozone. Assessing this situation is complicated. Weather and climate are highly complex systems that are fully nonlinear, meaning that small changes to the system in one location can cause large feedbacks throughout the system. Weather is inherently highly variable, particular at middle latitudes. To make matters more complicated, humans have a significant affect on the already highly unstable natural cycle. The body of evidence shows we are in a period of rapid warming near the surface that is due to human activity, which appears to be having significant affects on the weather. To further complicate the affect of temperature change, for a significant period of time we released a large amount of chlorofluorocarbons into the lower atmosphere, which made there way into the stratosphere and caused unnaturally large ozone losses, particularly at the poles (e.g. polar ozone holes). Goals of the NDACC program include trying to understand these interactions be making long term measurements of water vapour, ozone and temperature.

An image from the International Space Station shows a pileus cloud forming over the Sarychev volcanic eruption in 2009 (from the Wikipedia page on Pileus Clouds).
In addition to affecting ozone chemistry, the UTLS is a region of important dynamical interactions between air in the stratosphere and troposphere The tropospheric air can contain natural and anthropogenic pollutants, which are carried into the stratosphere and distributed on a global-scale before falling back to the surface, a process called stratosphere-troposphere exchange. We used to imagine that the stratosphere and troposphere were separated by a rigid “lid”, (the temperature inversion which defines the tropopause). Dur­ing times of intense convection over cumulonimbus clouds a pileus cloud would occasionally be observed to form in the lower stratosphere, but otherwise dry, ozone-rich stratospheric air was separated from relatively moist, ozone-depleted tropospheric air. However, it is now known that when the speed of the jet stream intensifies in regions of surface cyclogenesis tropospheric folds can develop which can cause air to rapidly be exchanged between the upper troposphere and lower stratosphere.

It is just now being recognized another factor which can affect water vapour and ozone in the UTLS is due to forest fires. We are already at the start of what is appearing to be a extremely active fire season. A small number of these fires can develop into huge wildfires that can combine with severe thunderstorms, where vigorous convection is occurring. It was only recently appreciated that this convection can be so strong that smoke particles and carbon monoxide can be carried into the stratosphere and transported great distances. While initial reaction to this idea was met with some skepticism, measurements have clearly demonstrated this is the case. With global warming comes more forest fire activity, and pyroconvection may have significant implications on ozone and temperature change. There has been activity the last few days from fires out West that may bring some of this smoke over the London area.



Measurements of a smoke layer in the UTLS due to a fire in northern Saskatchewan (from Doucet, 2009).

I will post more updates as the campaign progresses. In fact I just heard we had a successfully FPH flight last night (though it looks like we would need a submarine to recover this one as it landed in Lake Ontario, drat!).
